MDRV-08

Features Hardened,precision ground parts for durability Industry common cavity Compact size Adjustment may be locked in place Low leakage design Fast response to pressure surges

邮箱：sales@meric.cn

在线留言

产品详情

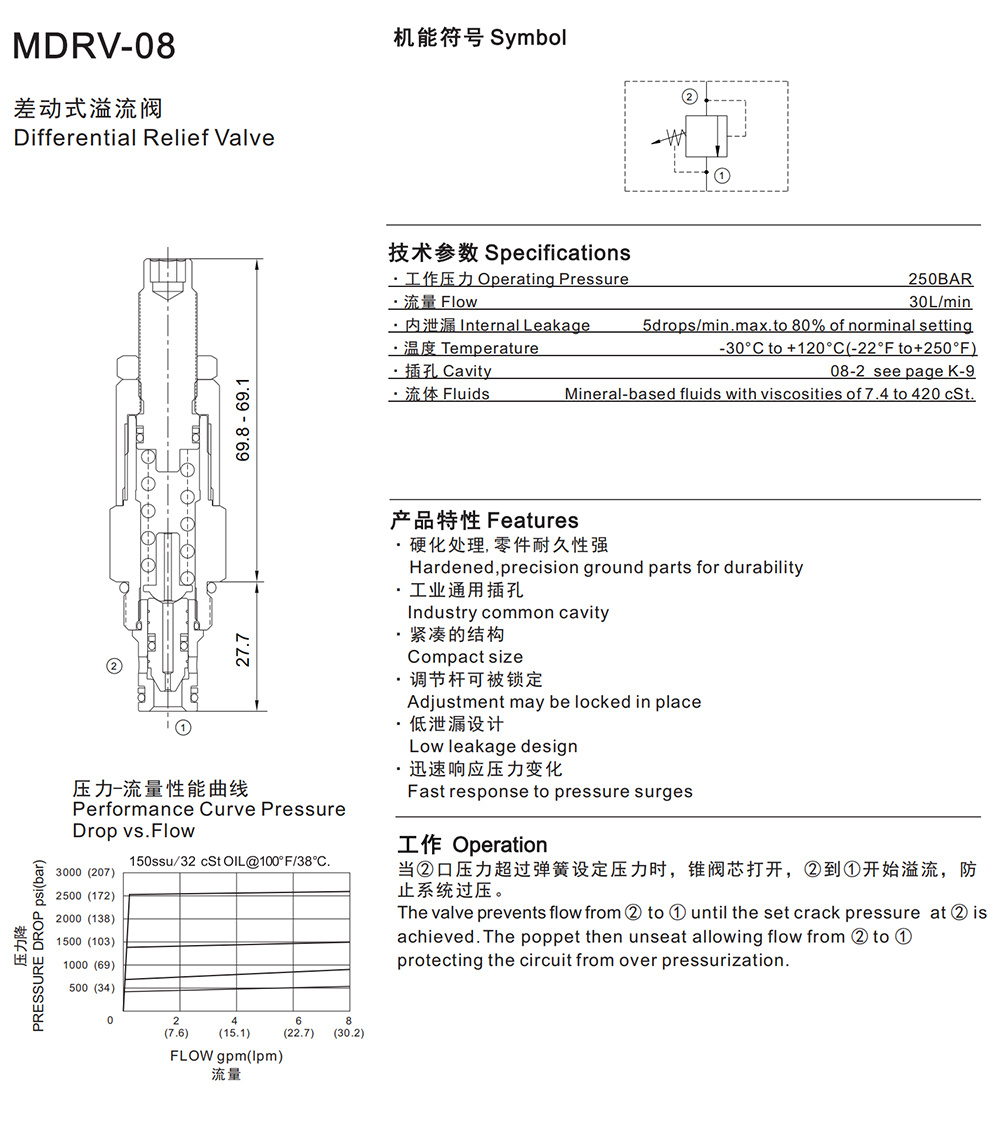

MDRV-08 MDRV-08

Specifications

Operating Pressure 250BAR

Flow 30L/min

Internal Leakage 5drops/min.max.to 80% of norminal setting

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity 08-2 see page K-9

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Compact size

Adjustment may be locked in place

Low leakage design

Fast response to pressure surges

Operation

The valve prevents flow from ② to ① until the set crack pressure at ② is

achieved.The poppet then unseat allowing flow from ② to ①

protecting the circuit from over pressurization.
