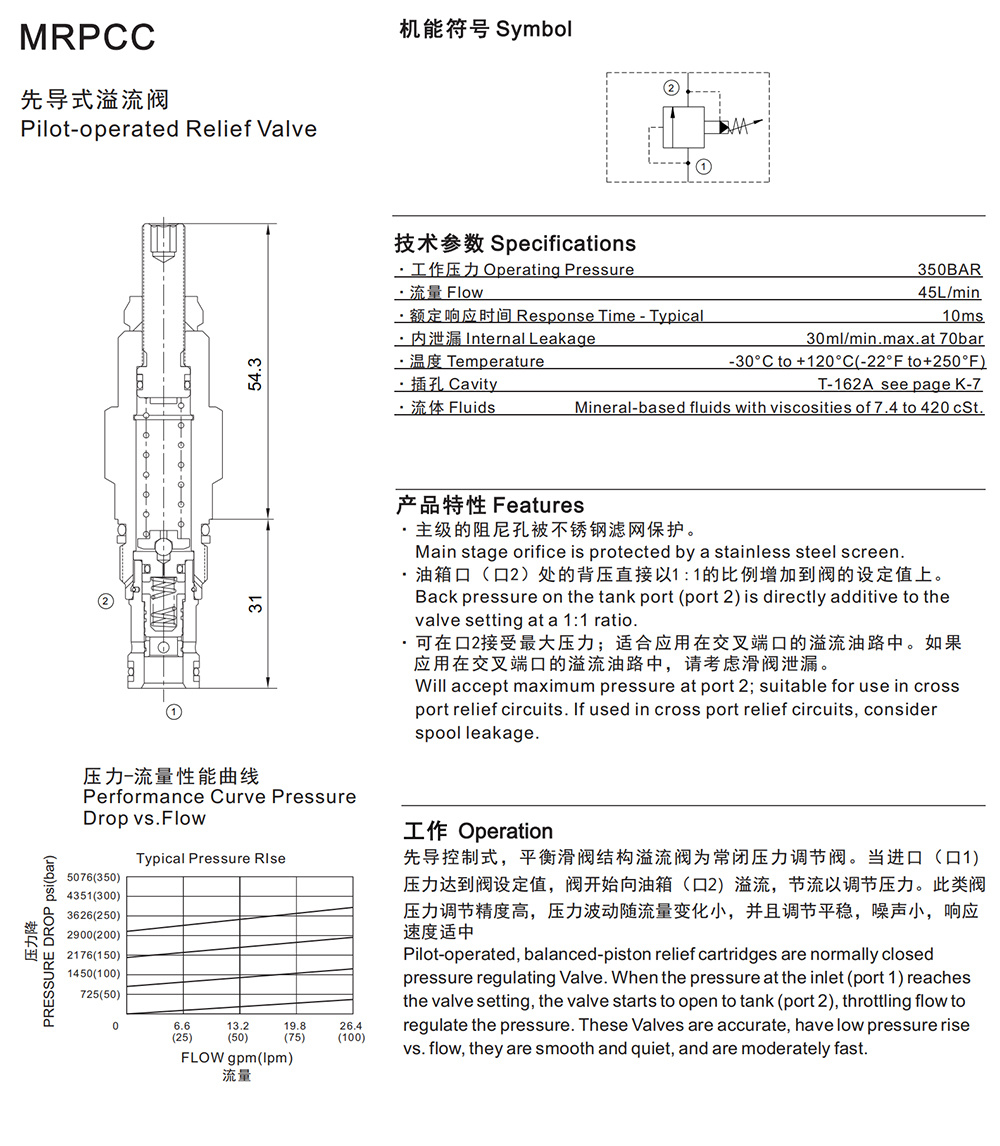

MRPCC MRPCC

Specifications

Operating Pressure 350BAR

Flow 45L/min

Response Time - Typical 10ms

Internal Leakage 30ml/min.max.at 70bar

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity T-162A see page K-7

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Main stage orifice is protected by a stainless steel screen.

Back pressure on the tank port (port 2) is directly additive to the

valve setting at a 1:1 ratio.

Will accept maximum pressure at port 2; suitable for use in cross

port relief circuits. If used in cross port relief circuits, consider

spool leakage.

Operation

Pilot-operated, balanced-piston relief cartridges are normally closed

pressure regulating Valve. When the pressure at the inlet (port 1) reaches

the valve setting, the valve starts to open to tank (port 2), throttling flow to

regulate the pressure. These Valves are accurate, have low pressure rise

vs. flow, they are smooth and quiet, and are moderately fast.
