MPBDB

Features Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit Pilot operated Valve exhibit exceptionally flat pressure/flow characteristics, are very stable and have low hysteresis

邮箱：sales@meric.cn

在线留言

产品详情

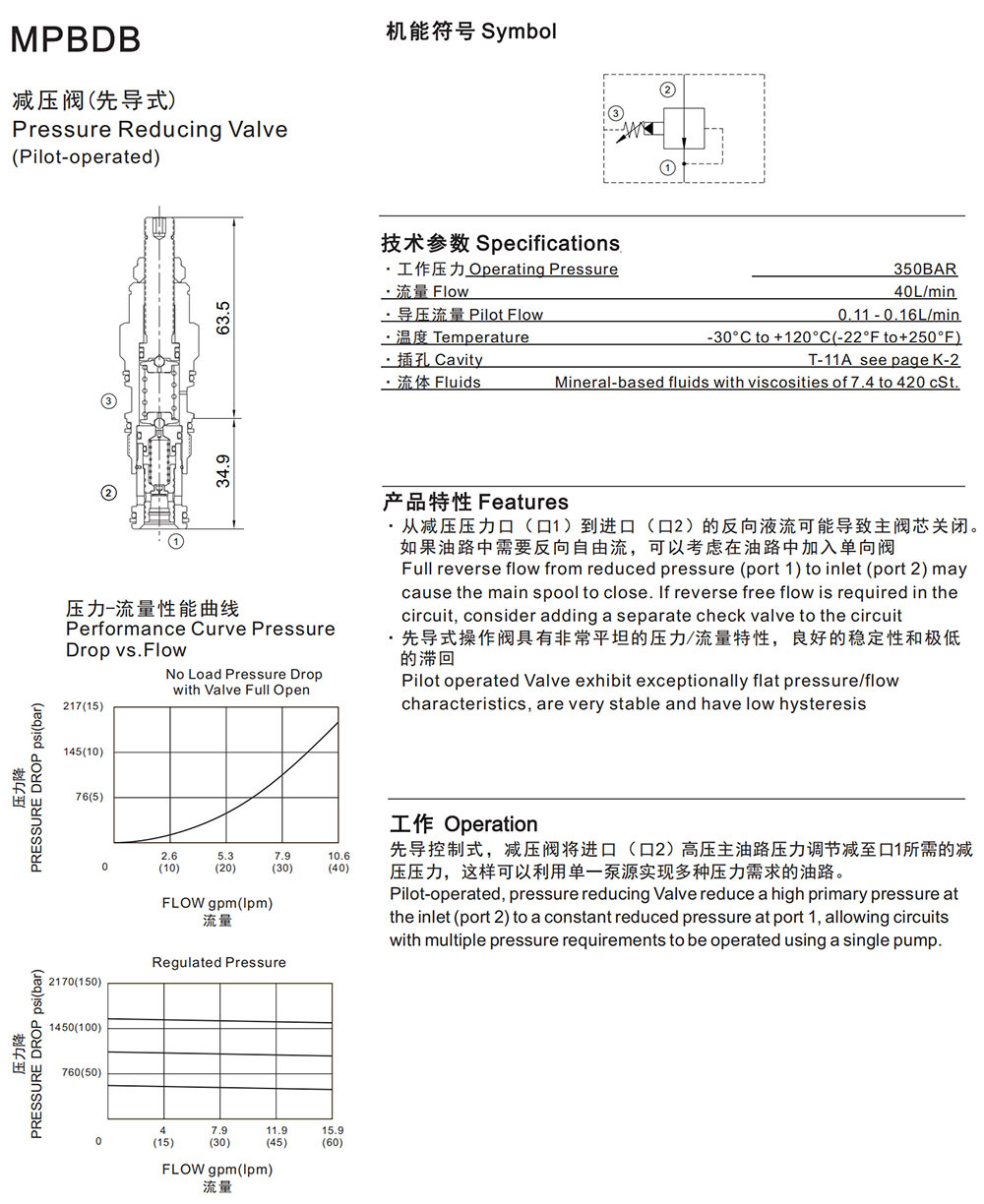

MPBDB MPBDB

Specifications

Operating Pressure 350BAR

Flow 40L/min

Pilot Flow 0.11 - 0.16L/min

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity T-11A see page K-2

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Full reverse flow from reduced pressure (port 1) to inlet (port 2) may

cause the main spool to close. If reverse free flow is required in the

circuit, consider adding a separate check valve to the circuit

Pilot operated Valve exhibit exceptionally flat pressure/flow

characteristics, are very stable and have low hysteresis

Operation

Pilot-operated, pressure reducing Valve reduce a high primary pressure at

the inlet (port 2) to a constant reduced pressure at port 1, allowing circuits

with multiple pressure requirements to be operated using a single pump.

None
