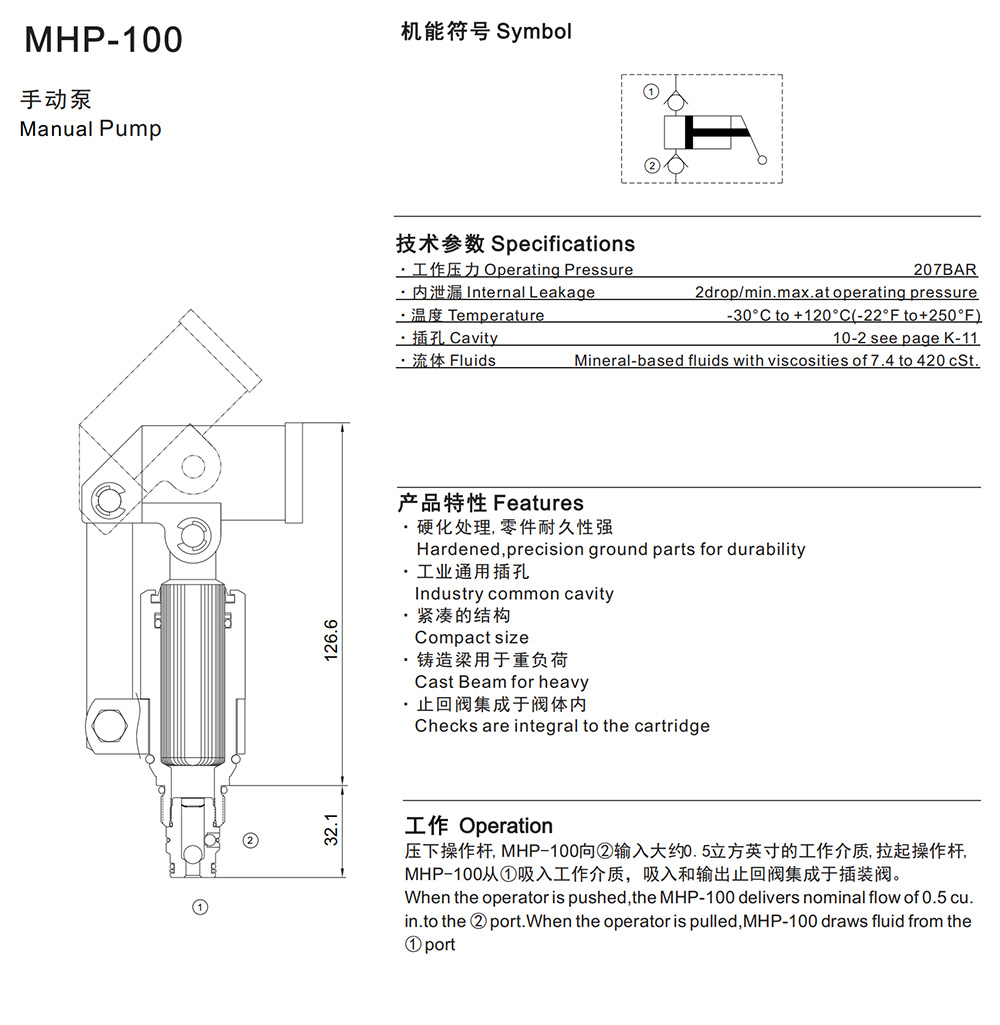

MHP-100

Features Hardened,precision ground parts for durability Industry common cavity Compact size Cast Beam for heavy Checks are integral to the cartridge

邮箱：sales@meric.cn

在线留言

产品详情

MHP-100 MHP-100

Specifications

Operating Pressure 207BAR

Internal Leakage 2drop/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity 10-2 see page K-11

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Compact size

Cast Beam for heavy

Checks are integral to the cartridge

Operation

When the operator is pushed,the MHP-100 delivers nominal flow of 0.5 cu.

in.to the ② port.When the operator is pulled,MHP-100 draws fluid from the

① port
