MSV2-08-2NORP

Specifications

Operating Pressure 207BAR

Flow 30L/min

Internal Leakage 3drop/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

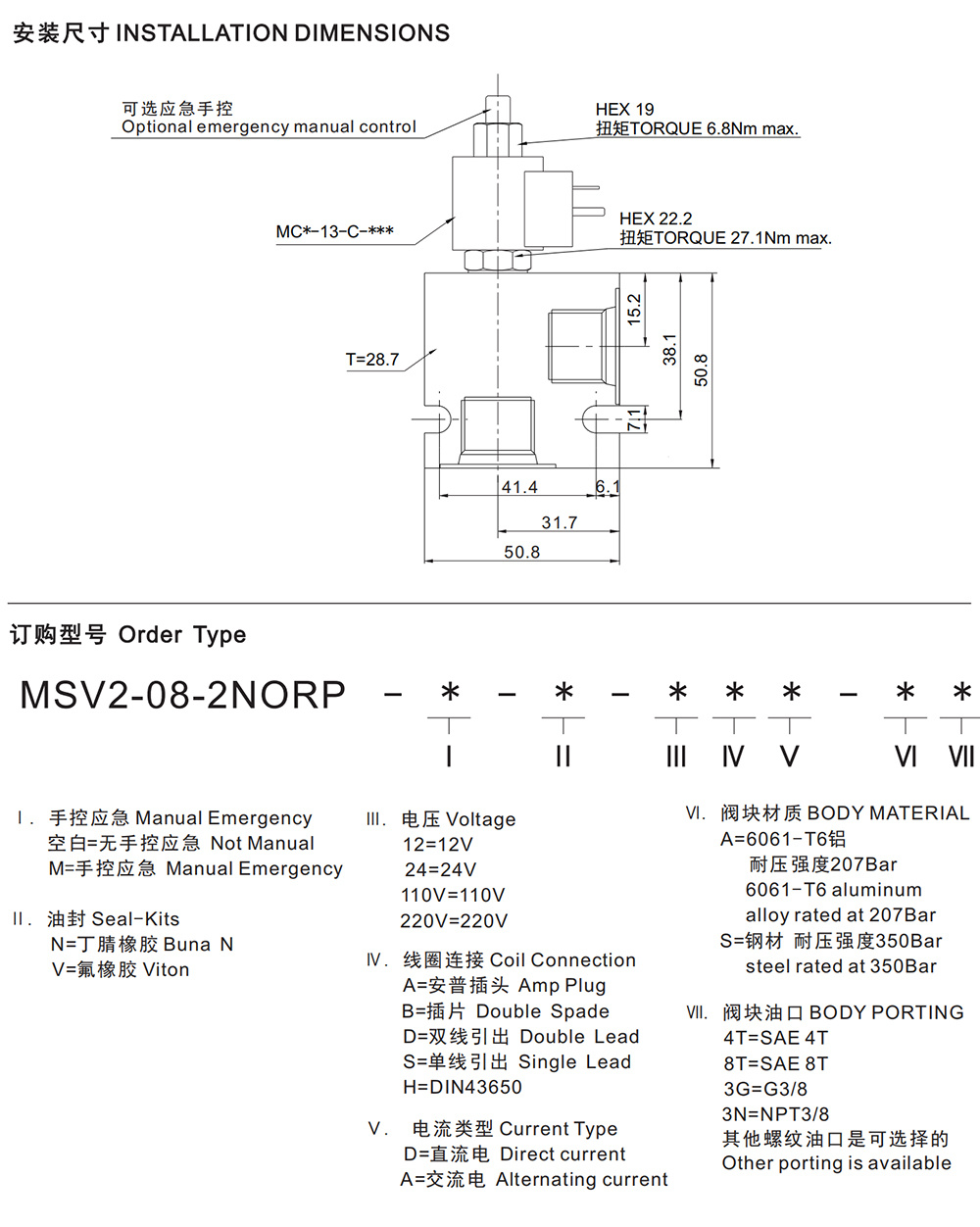

Cavity 08-2 see page K-9

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Efficient wet-armature construction

Continuous-duty solenoid

Compact size

Operation

When de-energized, the poppet lifts to open flow from ② to ① . Flow is also

open from ① to ② .

When energized ,the cartridge acts as a check valve, allowing flow from ①

to ②while blocking flow from ② to ① , after overcoming the solenoid force

(requires 3.4 to 10.3bar [50 to 150 psi).
