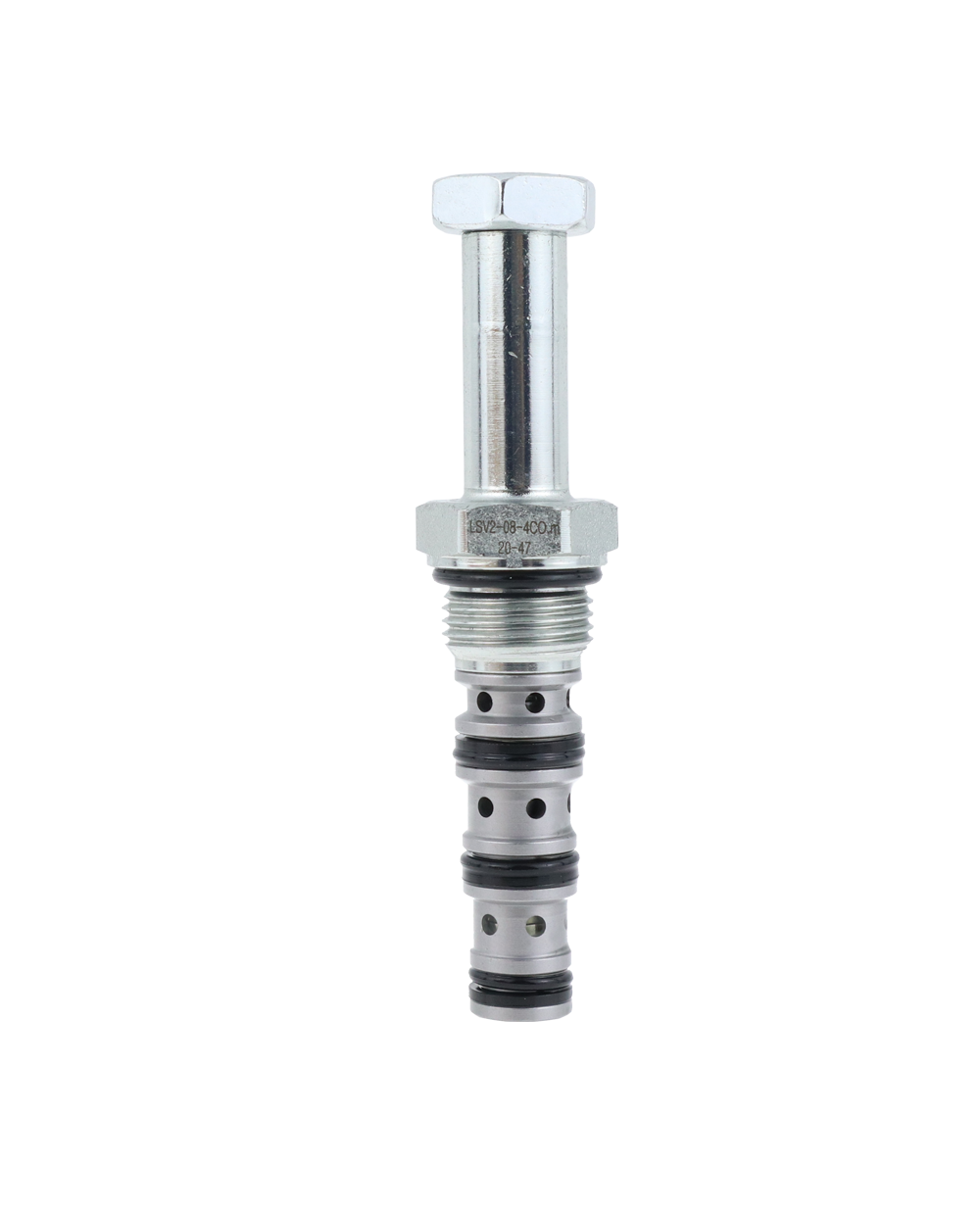

MSV2-08-4CO

Features Hardened,precision ground parts for durability Industry common cavity Efficient wet-armature construction Continuous-duty solenoid Compact size

邮箱：sales@meric.cn

在线留言

产品详情

MSV2-08-4CO

Specifications

Operating Pressure 207BAR

Flow 11.4L/min

Internal Leakage 82ml/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity 08-4 see page K-10

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Efficient wet-armature construction

Continuous-duty solenoid

Compact size

Operation

When de-energized, the valve flow paths are port ③ to port ②,

and port ④ to port ①;

When energized, the valve's spool shifts to open port ③ to port ④,

and port ① to port ② .
