MSV08-47C

Features Hardened,precision ground parts for durability Industry common cavity Efficient wet-armature construction Continuous-duty solenoid Compact size

邮箱：sales@meric.cn

在线留言

产品详情

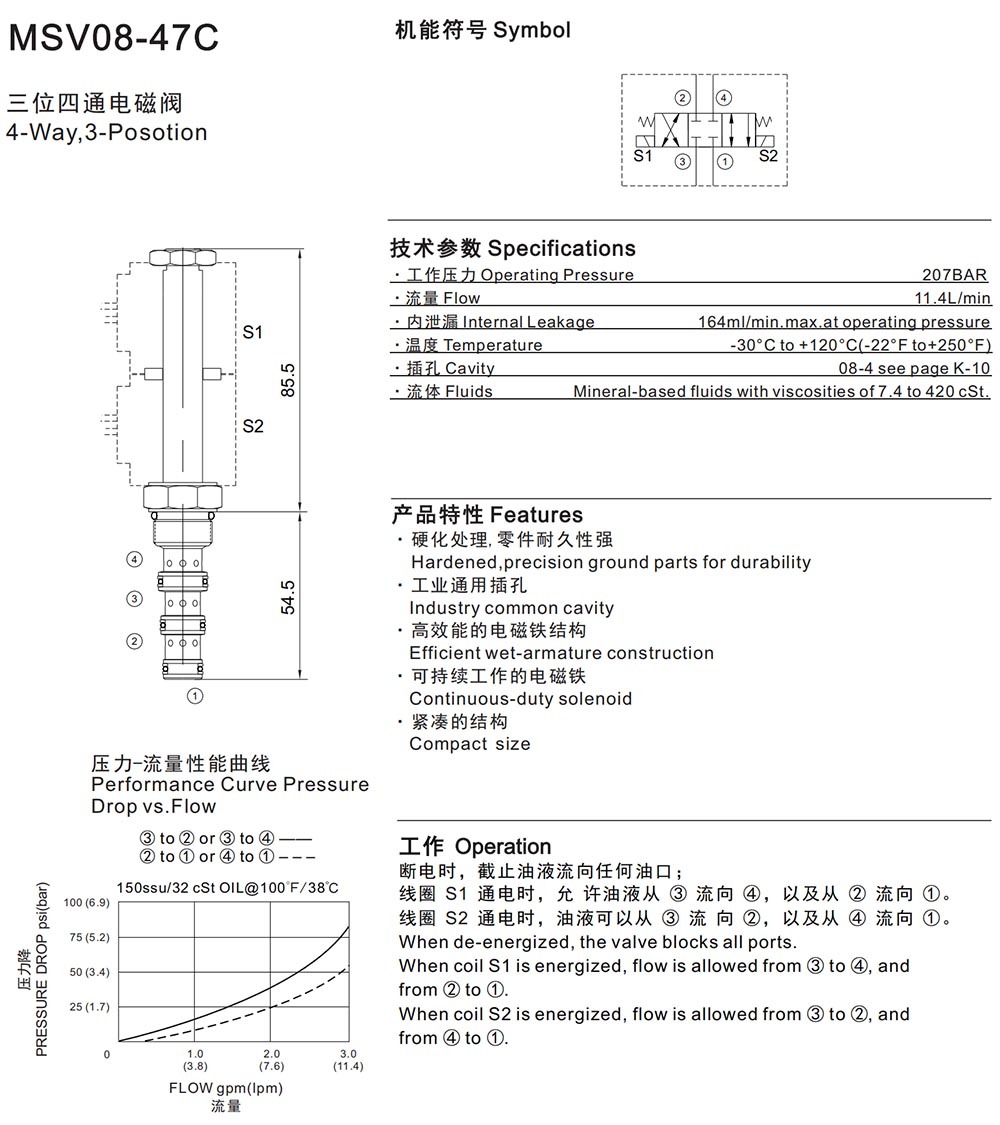

MSV08-47C

Specifications

Operating Pressure 207BAR

Flow 11.4L/min

Internal Leakage 164ml/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity 08-4 see page K-10

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Efficient wet-armature construction

Continuous-duty solenoid

Compact size

Operation

When de-energized, the valve blocks all ports.

When coil S1 is energized, flow is allowed from ③ to ④, and

from ② to ①.

When coil S2 is energized, flow is allowed from ③ to ②, and

from ④ to ①.
