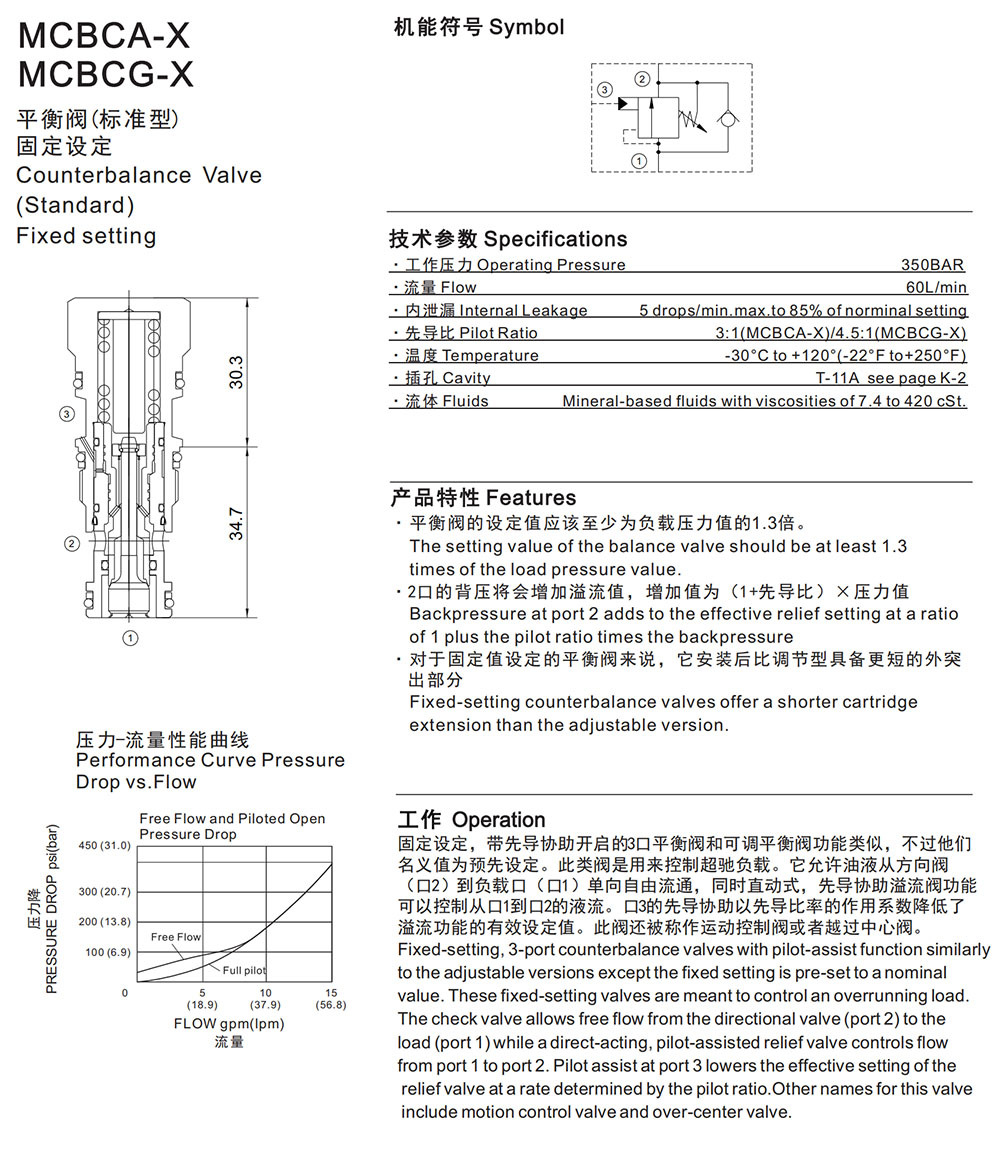

MCBCG-X MCBCG-X

Specifications

Operating Pressure 350BAR

Flow 60L/min

Internal Leakage 5 drops/min.max.to 85% of norminal setting

Pilot Ratio 3:1(MCBCA-X)/4.5:1(MCBCG-X)

Temperature -30°C to +120°(-22°F to+250°F)

Cavity T-11A see page K-2

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

The setting value of the balance valve should be at least 1.3

times of the load pressure value.

Backpressure at port 2 adds to the effective relief setting at a ratio

of 1 plus the pilot ratio times the backpressure

Fixed-setting counterbalance valves offer a shorter cartridge

extension than the adjustable version.

Operation

Fixed-setting, 3-port counterbalance valves with pilot-assist function similarly

to the adjustable versions except the fixed setting is pre-set to a nominal

value. These fixed-setting valves are meant to control an overrunning load.

The check valve allows free flow from the directional valve (port 2) to the

load (port 1) while a direct-acting, pilot-assisted relief valve controls flow

from port 1 to port 2. Pilot assist at port 3 lowers the effective setting of the

relief valve at a rate determined by the pilot ratio.Other names for this valve

include motion control valve and over-center valve.
