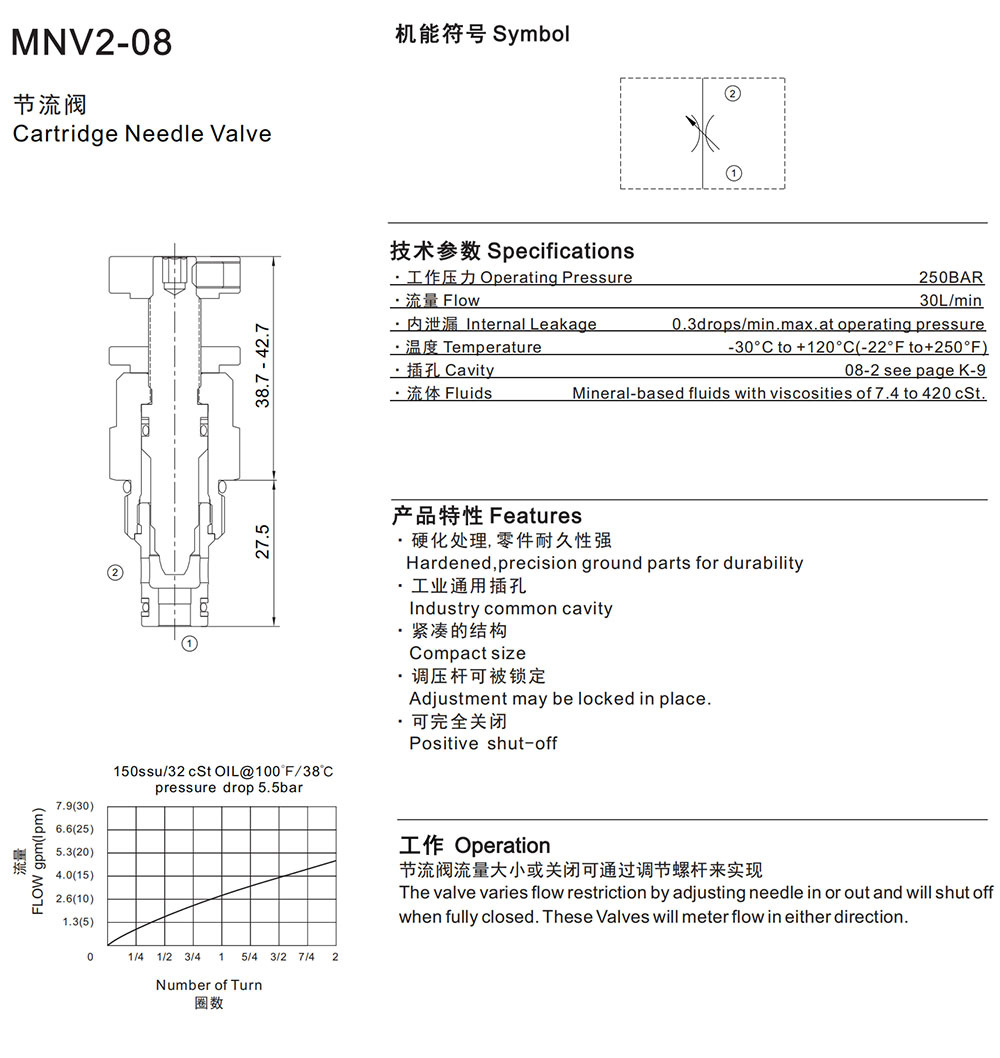

MNV2-08

Features Hardened,precision ground parts for durability Industry common cavity Compact size Adjustment may be locked in place. Positive shut-off

邮箱：sales@meric.cn

在线留言

产品详情

MNV2-08 MNV2-08

Specifications

Operating Pressure 250BAR

Flow 30L/min

Internal Leakage 0.3drops/min.max.at operating pressure

Temperature -30°C to +120°C(-22°F to+250°F)

Cavity 08-2 see page K-9

Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.

Features

Hardened,precision ground parts for durability

Industry common cavity

Compact size

Adjustment may be locked in place.

Positive shut-off

Operation

The valve varies flow restriction by adjusting needle in or out and will shut off

when fully closed. These Valves will meter flow in either direction.
