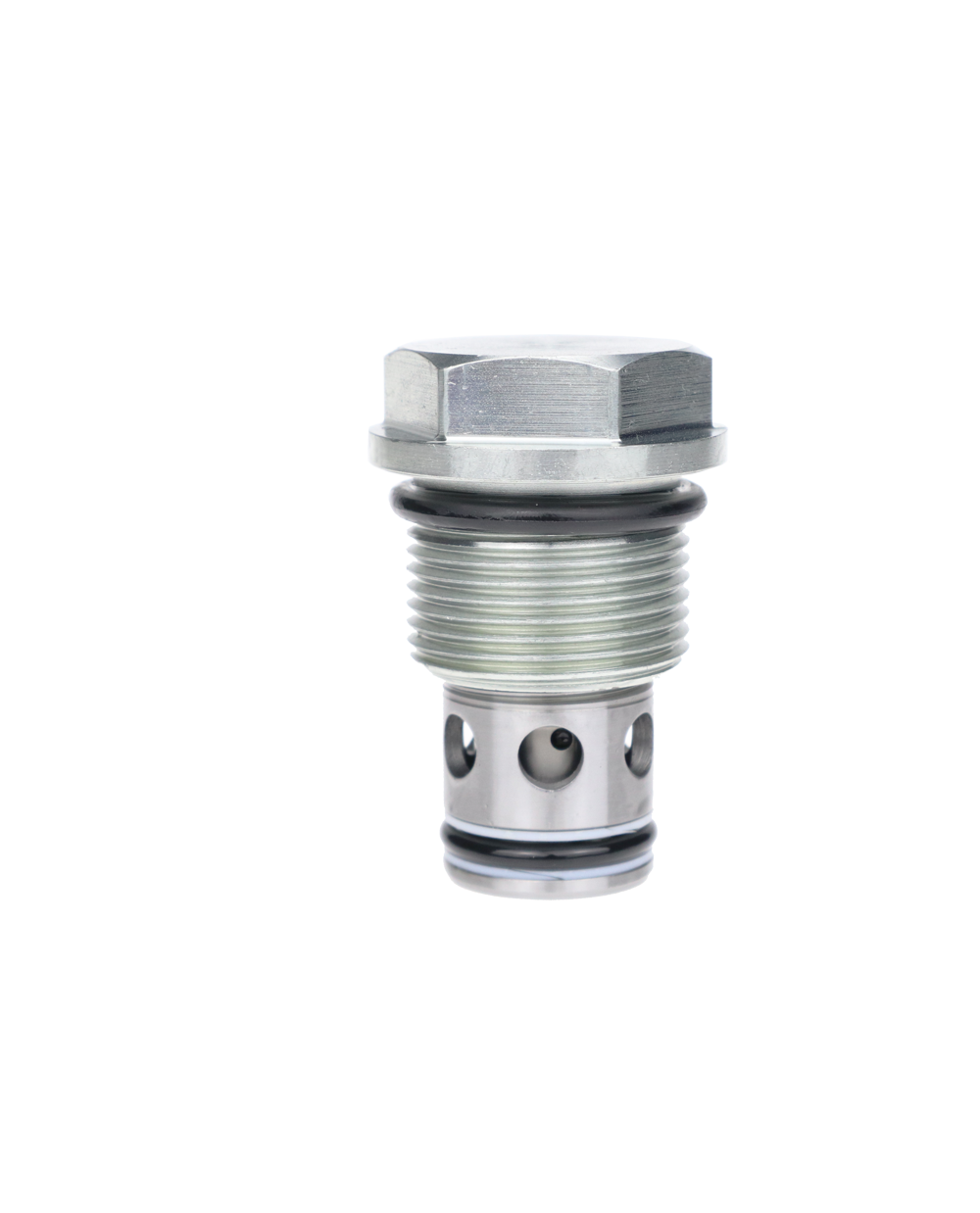

MCV-2H

Features Hardened,precision ground parts for durability Industry common cavity Compact size Low leakage design
图片名称
图片名称
图片名称
图片名称

邮箱：sales@meric.cn

在线留言

产品详情

MCV-2HMCV-2H

Specifications
Operating Pressure 350BAR
Flow 150L/min
Internal Leakage 3drop/min.max.at operating pressure
Temperature -30°C to +120°C(-22°F to+250°F)
Cavity CV-2H see page K-30
Fluids Mineral-based fluids with viscosities of 7.4 to 420 cSt.
Features
Hardened,precision ground parts for durability
Industry common cavity
Compact size
Low leakage design
Operation
Pressure at ① overcomes the spring-bias poppet and allows
free flow ① to ②.Flow in the opposite direction,from ② to ①,
is blocked by the poppet.
